# Tools for MCP Server/Agent Tools assets

This topic and the related tool descriptions provide a complete reference of all tools available for Agent Tools and their configuration options. Every tool entry lives in the tools list of the Agent Tools asset configuration (`agentConfigurationPrompt.tools`). Each entry is a dict/object containing at least the `id` field.

## Available tools

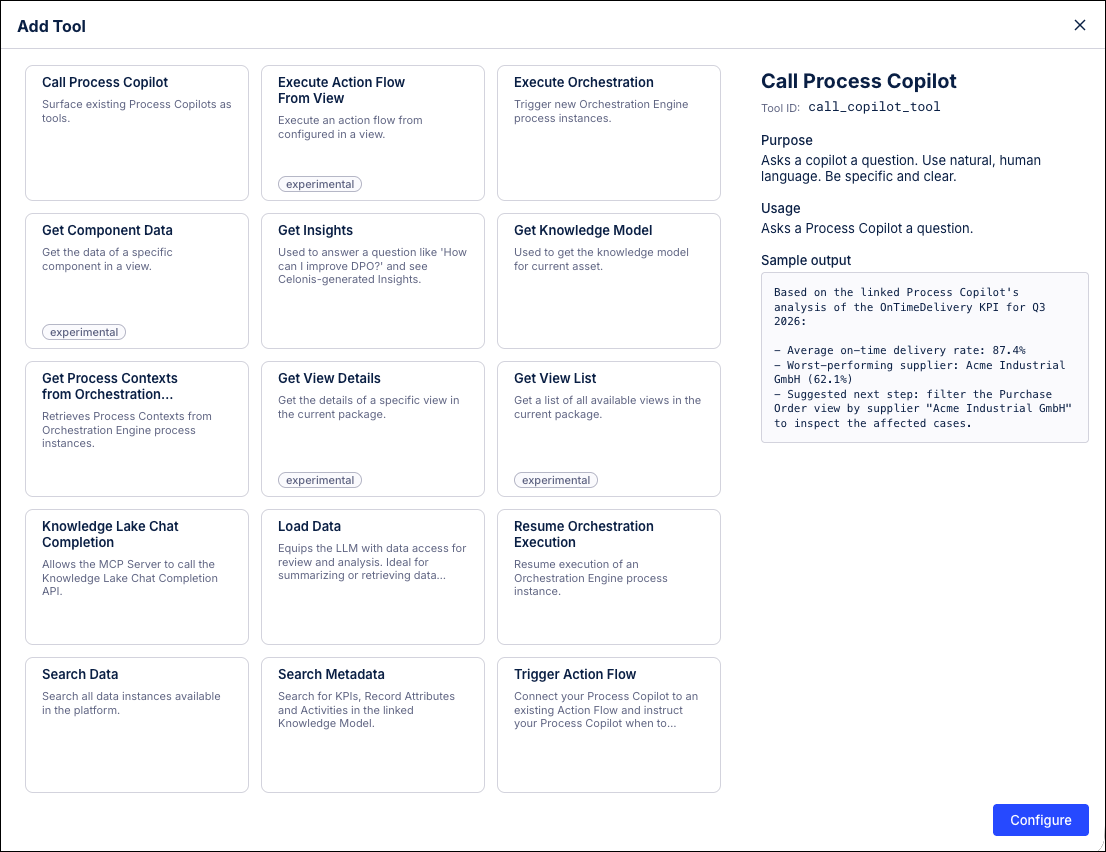

The following tools can be enabled for your Agent Tools/MCP Server assets:

| **Tool** | **Description** |
|  --- | --- |
| [Call Process Copilot](/mcp-server-asset/tools/call_process_copilot) | Delegates a question to a specific Process Copilot. |
| [Execute Orchestration](/mcp-server-asset/tools/execute_oe) | Sends a signal to Orchestration Engine to start a digital process. |
| [Get Insights](/mcp-server-asset/tools/get_insights) | Finds improvement potential by analyzing a KPI against record attributes. |
| [Get Knowledge Model](/mcp-server-asset/tools/get_knowledge_model) | Returns the knowledge model for the current asset. |
| [Get Process Contexts from Orchestration Engine](/mcp-server-asset/tools/get_process_contexts_from_oe) | Lists or queries digital process instances from Orchestration Engine. |
| [Load Data](/mcp-server-asset/tools/load_data) | The primary tool for loading data from the knowledge model. |
| [Resume Orchestration Execution](/mcp-server-asset/tools/resume_oe) | Resumes a paused Orchestration Engine process instance. |
| [Search Data](/mcp-server-asset/tools/search_data) | Searches for record instances using keyword matching or semantic search. |
| [Trigger Action Flow](/mcp-server-asset/tools/trigger_action_flow) | Connects your asset to an Action Flow. |


## Tool dependencies

* **get_insights**: Works independently. Does not require `load_data`.


## Knowledge Input

Tools that query data (`load_data`, `get_insights`, `search_data`) operate on the KPIs, record attributes, filters, and event logs defined in the knowledge_input section of the Agent Tools config. If a column ID referenced in a tool config does not exist in the knowledge model, the tool will fail at runtime.

## Multiple instances

You can have multiple instances of the same tool type (e.g., several `load_data` or `trigger_action_flow` entries). Each instance beyond the first **must** have a unique_id. The tool name exposed to the LLM becomes `{tool_id}_{unique_id}` (e.g., `load_data_get_overdue_invoices`), so choose descriptive unique_id values as they help the LLM pick the right tool.

## Description overrides

The Description field overrides the default tool description shown to the LLM. This is especially important for custom-mode tools where a good description tells the LLM **when** to use this specific tool instance. For example, "Use when the user asks about overdue invoices" is much more useful than "Loads invoice data".

## Fields common to all tools

Each tool supports these base fields:

```
id: <tool_id>             # Required — identifies the tool type
description: <string>     # Optional — override the default tool description shown to the LLM
active: true              # Optional — enable/disable this tool instance (default: true)
unique_id: <string>       # Optional — disambiguate multiple instances of the same tool type
```

## How pre-configuration works

For most tools with a mode of **Both** (Intelligent and Custom Configuration), you can pre-fill any subset of the tool's arguments in the YAML config. Any field you set is fixed and hidden from the LLM; any field you leave out is decided by the LLM at runtime. This lets you constrain some aspects of a tool while leaving others flexible.

**Exception — load_data**: This tool has a hard mode split. Setting columns switches it entirely to custom mode, where the full query (columns, filters, ordering, limit) is defined in config. The LLM fills **nothing** unless input_schema is defined for `${...}` placeholder variables. See [Data Load](/mcp-server-asset/tools/load_data) for more details.

## Availability Modes

| **Mode** | **Meaning** |
|  --- | --- |
| Intelligent | LLM decides all arguments at runtime. No pre-filled config beyond base fields. |
| Custom only | Creator must pre-fill the required arguments. The LLM only fills what's declared via `input_schema` or `flow_input_schema`. |
| Both | Tool works in either mode. You can pre-fill any subset of fields and the LLM fills the rest. |


## Configuration example

tools:

```
# Intelligent load_data — LLM picks columns, filters, etc.
 - id: load_data

 # Custom load_data — fully pre-configured query, LLM fills nothing
 - id: load_data
   unique_id: get_overdue_invoices
   description: Retrieves overdue invoices with vendor and clearing date.
   columns:
     - id: INVOICE.INVOICE_VENDOR_NAME
     - id: INVOICE.INVOICE_CLEARING_DATE_DAY
     - id: INVOICE.INVOICE_FISCAL_YEAR
   limit: 100

 # Custom load_data — with input variable for dynamic filtering
 - id: load_data
   unique_id: get_invoice_by_id
   description: Look up a specific invoice by number.
   columns:
     - id: INVOICES.INVOICE_NUMBER
     - id: INVOICES.INVOICE_VALUE
   filters:
     - pql_template:
         pql: FILTER "invoices"."Invoice Number" in ('${invoice_number}')
         name: Invoice Number Filter
   input_schema:
     properties:
       invoice_number:
         description: The invoice number to look up.


 # Display tools — intelligent (LLM decides arguments at runtime)
   - id: display_chart
   - id: display_kpi
   - id: display_process

 # Display table — partially configured (fixed columns, LLM decides sorting)
   - id: display_table
     column_ids:
       - INVOICE.INVOICE_NUMBER
       - INVOICE.INVOICE_VENDOR_NAME
       - KPI_INVOICE_VALUE

 # Other intelligent tools
 - id: get_insights
 - id: search_data
 - id: get_process_data
 - id: get_process_model
 - id: python

 # Action flow — LLM fills the declared inputs
 - id: trigger_action_flow
   unique_id: send_email
   flow_key: my-package.email-scenario
   flow_display_name: Send Email
   flow_input_schema:
     type: object
     required:
       - email
       - body
     properties:
       email:
         type: string
         description: Recipient email address.
       body:
         type: string
         description: Email body text.

 # Delegate to another Copilot
 - id: call_copilot_tool
   unique_id: vendor_copilot
   description: Delegates vendor questions to the vendor management copilot.
   root_with_key: rootNodeKey.assetKey

 # Document search with customer vector store
   - id: document_search
     topics:
       - public_docs
     vector_store_id: my-docs-store
```
